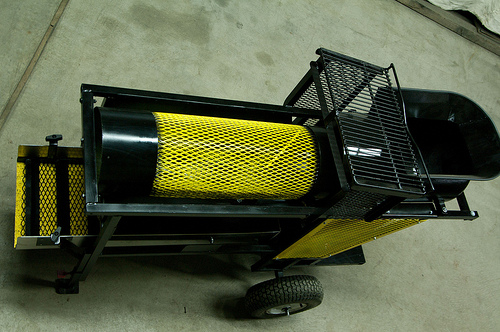

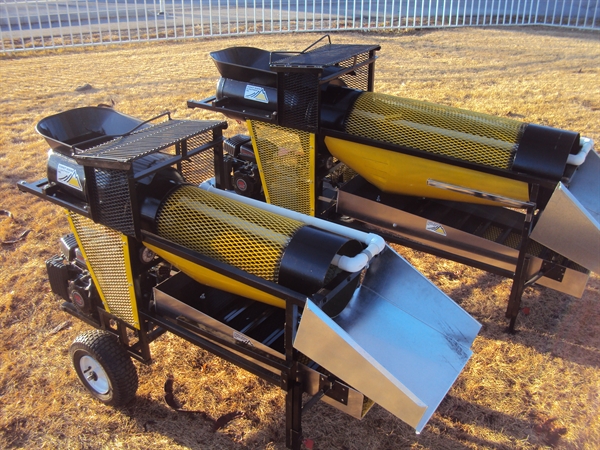

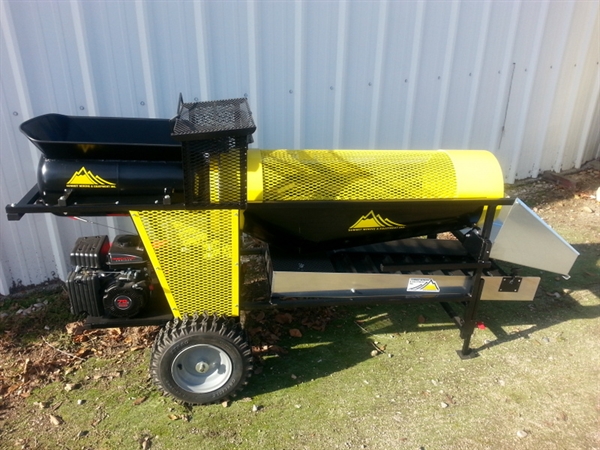

Summit Mining 10 inch and 14 inch Trommels with a petrol engine weight about 120 Kgs
$5630.00 for the 10" and $7325.00 for the 14"
Dimensions: 72″ long, 32″ wide (from wheel to wheel) and 44″ tall.
Rotating drum: 14″ diameter/ 48″ long. Also a 10 inch model available.
Sluice box: 48″ long, 14″ wide, 4.5″ tall
Transmission: 1 speed belt to chain drive.

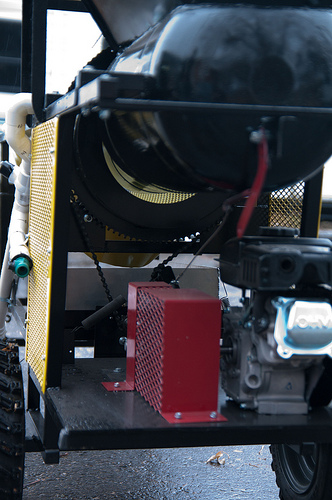

Small garden hose with nozzle may also be attached to aid with the cleanup process. Petrol 2.5 hp OHV engine.
How the Pro Gold Trommel works:

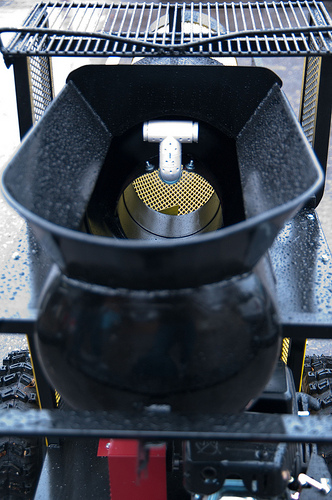

Material is placed into the hopper, where the first spray zone washes the material before entering the rotating drum. The second spray zone, inside the rotating drum, washes the material as it tumbles. The third spray zone, outside the rotating drum, keeps the drum clean and helps wash the material.This unique design ensures the material is washed from multiple angles as the drum rotates.
As the material is washed and tumbled, the smaller pieces and dirt fall through the drum’s heavy steel screen into the funnel assembly. From there they are directed into the top end of the sluice and get washed through the riffles.The larger material still in the rotating drum, is tumbled and washed for the entire length of the drum and dropped out the end onto the trough.
It’s heavy duty and easy to maneuver.
